     In the contemporary world, the complexity of sociotechnological systems grows at a dizzying pace. From germline genome editing to artificial intelligence to bioprinting, we are experiencing a present that once only existed in science fiction. Some futurists, perhaps most notably Raymond Kurzweil, have proposed that this increasing complexity reflects a larger exponential trend that may soon result in radical changes to our world.¹ This phenomenon is known as the technological singularity. Kurzweil states, “I set the date for the Singularity – representing a profound and disruptive transformation in human capability – as 2045. The nonbiological intelligence created in that year will be one billion times more powerful than all human intelligence today.” (The Singularity is Near, pg. 122) Although this prediction may initially sound outrageous, Kurzweil has shown a remarkable ability to accurately envision future events as evidenced by his numerous successful predictions; for instance, former world chess champion Garry Kasparov losing his games against IBM’s Deep Blue chess computer in 1997. In the scenario of a technological Singularity, humans and technology could merge, leading to the profound transformation mentioned by Kurzweil. This transformative potential challenges assumptions regarding human physiology and planetary ecology. The barrier blurs between human and computer, mandrill and machine, coral reef and coral simulation. This cyborgization innervates biological matter with technological matter and vice versa, dissolving their distinction. The implications of the Singularity and the related transhumanist movement have present relevance as well. They reveal that current boundaries between flesh and innovation represent arbitrary cutoffs brought about by lesser physical integration. According to this framework, I propose that biology and technology are two names for one general phenomenon: cyberbiology.

     Throughout evolutionary history, cyberbiology has faced challenges and devised solutions. Long before the first handheld tool was invented, kinetic forces modified self-replicating patterns to develop adaptations like aerobic respiration, nervous systems, and teeth. Analogous to the rationally designed tool, a process of trial and error allowed optimization for given environments and situations. The “brain” conducting this process was an ecosystem. Rather than simulating tool design inside an individual’s cranium, these adaptations were developed by the multitude of components comprising savannahs, oceans, and jungles. Rather than evolving as abstract representations in a meshwork of neurons and glia, these tools evolved from the interplay among such constituents as herbivorous Indricotherium, carnivorous Lycopsis, ferns, lakes, and climatological factors. Using these methods, the biosphere made technologies in the form of adaptations.

     As the neocortex expanded, mammalian brains attained the ability to represent further layers of abstraction. Executive cognition strengthened, enabling planning and goal-directed behavior. Neural tissue simulated more and more complex scenarios, playing out potentialities in bioelectric code. Remarkably, the dancing molecules had developed an accelerated mode of innovation. The ecosystem was no longer the smartest entity around. Individual brains could now emulate the evolutionary process. Consider early fire use by Homo erectus.² These hominids processed sensory data into neural representations, then accrued memories along with associated evaluations by reward learning. In an extension of the affordance competition hypothesis,³ I propose that Homo erectus and their descendants also generated “mutant” scenarios based on their recollections. For instance, they may have seen predators avoiding flames in the past. They may have observed that fire does not generally spread over rocks. As mentioned, these concepts have neural representations in brains. As the memories were replayed, neural activity cascading in waves through those hominid cerebra, the representations mutated via both noise and spike pattern recombination. In this way, the hominids may have generated new variations on preexisting data. Using the learned outcomes associated with those preexisting data, these variations would have acted as predictions. The Homo erectus may have predicted that a controlled burn in the middle of some rocks could protect them from predators. Although this example is hypothetical, it analyzes cognition from an alternative angle and so demonstrates an important principle. Cognition performs the same task as evolution, albeit much more quickly.

     In recent times, cyberbiology has further improved its problem solving abilities. The human species has developed into a global social network, with groups and organizations taking on similar roles to brains. For instance, an oncology research institute behaves, in many ways, as a single entity with the goal of developing cancer treatments. This does not mean that humans only function as hiveminds. Individuals often still contribute uniquely. These contributions are a larger-scale analogue of mutating neural patterns. Numerous creative individuals develop innovations to approach challenges, these innovations compete and a few translate into societal “motor outputs.” Some examples of societal motor outputs include biomedical technologies, software applications, policy shifts, construction projects, and widespread ideological shifts. Cyberbiology utilizes social organizations to empower cognition in a similar way to how cognition empowers evolution.

     By now, cyberbiology has constructed additional modules to augment its intelligence. Computers spend milliseconds performing data analytic tasks that would take humans thousands of years. For instance, deciphering the three billion base pairs in the human genome requires computational assistance. Computational methods also vastly improve precision in engineering, allowing growth in robotics, aerospace, industrial chemistry, and countless other areas. The internet allows global sharing of human knowledge and clever algorithmic tools. The network increases in connectivity while installing backups and failsafes, seething with complexity. All the while, the noosphere’s constituents compete and replicate across scales. Patterns arise as atoms fluctuate in a symphony of organized chaos, ideas germinate as those patterns propagate and undergo selection in neurons, societal motor behaviors occur as those ideas proliferate and mutate among minds and microprocessors. The dance of molecules has reached a crescendo, but this is only the beginning of the sonata.

     Cyberbiology approaches an event horizon, the Singularity. This represents another level of intense evolutionary acceleration, similar to the leap from ecological evolution to cognitive evolution. In a post-singularity world, biological consciousness could transition to alternative substrates through mind uploading, nanorobots might enable seemingly magical manipulation of matter, and the cosmos could eventually saturate with intelligence. This process could lead to a form of “technological nirvana.” The Singularity may occur via artificial superintelligence or through a synthesis of human and non-biological intelligence.⁴ Either way, intelligence could rapidly design more powerful intelligence, which then could continue to design still more powerful intelligence. In this way, the Singularity may act as a new layer of metacognition.

     Synthetic biology illustrates the indistinguishability of technology and biology. While all biology and technology fits under the umbrella of cyberbiology, synthetic biology provides a particularly poignant example of how the traditional boundaries dissolve. Synthetic biology involves taking an engineering approach to biology, constructing new biological systems using biological parts like promoters, plasmid backbones, thermosensitive RNA step-loop structures,⁵ and protein domains. These parts are arranged into machinery that performs useful tasks. Probiotic E. coli have been engineered to constitutively produce signaling molecules that downregulate virulence in Vibrio cholera.⁶ When mice were fed with these E. coli cells, their survival of cholera infection increased. The modular domains of polyketide synthase complexes have been rearranged to help discover and synthesize new polyketide antimicrobials.⁶ Transgenic mosquitos that selectively express a flight-disabling gene in females may decrease the spread of malaria and dengue. Male mosquitos do not transmit such diseases, so they serve to safely propagate the gene into mosquito populations by mating with the females.⁶ Such research shows that biological systems can merge seamlessly into human designs and vice versa, further demonstrating that biology and technology cannot be truly separated.

     Another informative instance of cyberbiology is neuroengineering. We are quite familiar with the human brain as the source of our art, literature, science, mathematics, and personal experiences. As a consequence of its enormous complexity, the brain’s longtime mysteriousness has provoked mystical explanations for the emergence of the mind. As they often derive from religious and naturalist thought, these explanations tend to markedly separate technological and natural systems. However, understanding of the brain is increasing through large-scale projects such as the Human Brain Project, the BRAIN Initiative, and the China Brain Project,⁷ paving the way for neuroengineering to continue blurring such barriers between technology and biology. Recently, there has been a surge of research in developing more advanced brain-computer interfaces. Entrepreneur Brian Johnson invested one hundred million dollars to launch a BCI startup called Kernel.⁸ Elon Musk has initiated a venture called Neuralink⁹ to help humans keep up with artificial intelligence by developing BCI technologies that will grant a more direct connection to the digital “exocortex.” Facebook has announced research on non-invasive BCIs intended to allow people to telepathically type one hundred words per minute.¹⁰ The Maharbiz group at UC Berkeley has developed prototype “neural dust,” tiny implantable devices that wirelessly transmit neural recording data using ultrasound.¹¹ Inspired by the science fiction of Iain M. Banks, the Lieber group at Harvard has developed prototype neural lace, an injectable bioelectronic mesh that may help facilitate use of invasive neural interfaces without surgery.¹² The Berger group at University of Southern California has developed a hippocampal implant for repairing and enhancing memory. This device has been tested in primates¹³ and recently, humans. DARPA has given out a sixty five million dollar grant to six other BCI research groups for developing better bidirectional neural interfaces.¹⁴ Such technological integration with neurobiology shows that the mind does not hold some transcendental property that renders it immutable by scientific means. Neuroengineering demonstrates that the mind is cyberbiology.

     Although cyberbiology does not always yield a net positive after developing any given adaptation, it continually self-corrects and optimizes. Two and a half billion years ago, cyanobacteria developed photosynthesis and produced diatomic oxygen. In a world of obligate anaerobes, a massive extinction event occurred. However, detoxification technologies and oxygen utilization mechanisms evolved, allowing a transition to a largely aerobic biosphere. Early chemotherapeutic cancer treatments used toxic compounds that caused widespread damage to healthy tissue as well as tumors.¹⁵ More selective tumoricidal drugs have since developed. Now, highly specific and effective molecular immunotherapies like chimeric antigen receptor T cells are further optimizing the therapeutic arena.¹⁶ Automation in America may initially disrupt the nation’s capitalistic system by rendering many jobs obsolete. However, pure capitalism has demonstrated negative qualities, particularly in the long-term. Automation also decreases the cost of manufacturing, shifting the means of production to the robots and making essential products less expensive. This could pave the way for more governmental social spending, potentially allowing the universal basic income to be implemented.¹⁷ Evolution is an ongoing process of innovation, testing, drawback correction, and more innovation.

     Cyberbiology supports an engineering approach to contemporary challenges. This approach includes both sociopolitical solutions and technological solutions. The sociopolitical case still represents a form of technology since it requires iterative design and implementation. Consider the example of geoengineering as a potential method for combating climate change. Some oppose geoengineering on moral and precautionary grounds,¹⁸ seeing it as a violation of the sanctity of nature and a dangerously hubristic idea. According to cyberbiology, geoengineering is a manifestation of nature since it evolves as a population of self-replicating information patterns encoded in human brains and machines. From this perspective, the moral objections are invalid. While the precautionary objection still holds some value, emphasis should be placed on improving the design of geoengineering technologies to minimize negative ecological side effects rather than on moral condemnation of humans. Any problem can be solved by innovation, but these adaptations must sequentially evolve towards the solution using an engineering process.

     Biology and technology both undergo evolution. Replication, mutation, and selection applies to populations of cells, organisms, neural firing patterns, and inventions. Whenever information is propagated with error under selective conditions, regardless of that information’s substrate, it evolves. Strictly ecological evolution occurs slowly because it is mediated by kinetic forces as organisms collide, eat each other, and mate. With the development of more powerful nervous systems and social communication, simulation of hypotheses within and among minds enables a much faster form of evolution. Language, writing, the internet, and related adaptations further increase the efficiency of cognitive evolution. With the advent of intelligent systems capable of improving themselves such as AGI and cyborgs, another level of metacognitive abstraction may develop another much faster form of evolution. Synthetic biology and neurotechnology exemplify how, as more complex systems are built, assumed barriers between biology and technology lose their conviction. When a new adaptation propagates, it may have negative effects as well as positive effects, but it continues to iteratively improve and minimize the drawbacks. For this reason, a technobiological approach to problems like climate change involves optimizing innovations to circumvent negatives rather than avoiding innovation due to moral judgement or excessive caution. Biology and technology are manifestations of a fundamental evolutionary process within a cosmic network, working in synchrony as cyberbiology, quintessentially indistinguishable.



References

1. Kurzweil, R. (2005). The Singularity is Near: When Humans Transcend Biology. New York: Viking.
2. Berna, F., et al. (2012) Microstratigraphic evidence of in situ fire in the Acheulean strata of Wonderwerk Cave, Northern Cape province, South Africa. Proceedings of the National Academy of Sciences, 109(20), doi:10.1073/pnas.1117620109.
3. Cisek, P. (2007) Cortical mechanisms of action selection: the affordance competition hypothesis. Philosophical Transactions of the Royal Society B, 362(1485), doi:10.1017/cbo9780511731525.015.
4. Vinge, V. (1993) The Coming Technological Singularity: How to Survive in the Post-human Era. Interdisciplinary Science and Engineering in the Era of Cyberspace, https://ntrs.nasa.gov/search.jsp?R=19940022856
5. Neupert, J., et al. (2008) Design of simple synthetic RNA thermometers for temperature-Controlled gene expression in Escherichia coli. Nucleic Acids Research, 36(19), doi:10.1093/nar/gkn545.
6. Weber, W, and Fussenegger, M. (2012) Emerging biomedical applications of synthetic biology. Nature Reviews Genetics, 13(21), doi:10.1038/nrg3094.
7. Okano, H., and Tetsuo, Y. (2016) How can brain mapping initiatives cooperate to achieve the same goal? Nature Reviews Neuroscience, 17(12), doi:10.1038/nrn.2016.126.
8. Regalado, A. (2017). Silicon Valley’s race to develop a brain-computer interface. Accessed August 28, 2017 from, https://www.technologyreview.com/s/603771/the-entrepreneur-with-the-100-million-plan-to-link-brains-to-computers/
9. Etherington, D. (2017) Elon Musk’s Neuralink wants to boost the brain to keep up with AI. TechCrunch, Accessed August 29, 2017 from, techcrunch.com/2017/03/27/elon-musks-neuralink-wants-to-boost-the-brain-to-keep-up-with-ai/.
10. Constine, J. (2017, April 19). Facebook is building brain-computer interfaces for typing and skin-hearing. TechCrunch Accessed August 28, 2017, from https://techcrunch.com/2017/04/19/facebook-brain-interface/
11. Seo, D., et al. (2016) Wireless Recording in the Peripheral Nervous System with Ultrasonic Neural Dust. Neuron, 91(3), doi:10.1016/j.neuron.2016.06.034.
12. Liu, J., et al. (2015) Syringe-Injectable electronics. Nature Nanotechnology, 10(7), doi:10.1038/nnano.2015.115.
13. Deadwyler, S. A., et al. (2017) A cognitive prosthesis for memory facilitation by closed-loop functional ensemble stimulation of hippocampal neurons in primate brain. Experimental Neurology, 287, doi:10.1016/j.expneurol.2016.05.031.
14. Hatmaker, T. (2017) DARPA awards $65 million to develop the perfect, tiny two-way brain-computer interface. TechCrunch Accessed August 29, 2017 from, techcrunch.com/2017/07/10/darpa-nesd-grants-paradromics/.
15. Papac, R. J. Origins of Cancer Therapy. (2001) The Yale Journal of Biology and Medicine, 74(6),
16. Restifo, N. P., et al. (2012) Adoptive immunotherapy for cancer: harnessing the T cell response. Nature Reviews Immunology, 12(4), doi:10.1038/nri3191.
17. Painter, A., an Chris, T. (2015) Creative citizen, creative state: the principled and pragmatic case for a Universal Basic Income. London: RSA
18. Preston, C. J. (2012) Ethics and geoengineering: reviewing the moral issues raised by solar radiation management and carbon dioxide removal. Wiley Interdisciplinary Reviews: Climate Change, 4(1), doi:10.1002/wcc.198.

Credit for images: An Introduction to Medicinal Chemistry (Graham L. Patrick)

Oral Drug Absorption and Amines

• Many oral drugs which are efficiently absorbed contain amines.
• Amines develop an equilibrium between charged and uncharged forms in the slightly basic intestines and the slightly acidic blood. Based on the Henderson-Hasselbalch equation (below), amines are approximately 50% ionized in a pH of 6-8.

• When the amine is charged, it has good water solubility and can form ionic interactions with the drug’s target.
• When the amine is uncharged, it can pass through membranes and be absorbed more easily.

Oral Drug Absorption Guidelines

• If a drug is too hydrophilic, it will not pass through the cell membranes of the gut wall.
• If a drug is too hydrophobic, it will dissolve and get stuck in fat globules and be poorly soluble in the rest of the gut.
• Lipinski’s rule of five provides general guidelines for characteristics that may allow good absorption of a drug.
  • Molecular weight less than 500
  • Less than or equal to 5 hydrogen bond donor groups
  • Less than or equal to 10 hydrogen bond acceptor groups
  • Calculated logP value of less than 5 (logP is a measure of hydrophobicity)
• An alternate system involves using the polar surface area of a drug. In this system, it was found that more freely rotatable bonds often indicates less oral bioavailability. To have good oral bioavailability according to this system a drug should possess:
  • Either a polar surface area of ≤140 Å and ≤10 rotatable bonds (excluding rotatable bonds of simple groups like hydroxyl and methyl that don’t greatly affect the shape of the molecule)
  • Or ≤12 total hydrogen bond donors and acceptors and ≤10 rotatable bonds (excluding rotatable bonds of simple groups like hydroxyl and methyl that don’t greatly affect the shape of the molecule)
• Some highly polar oral drugs can break these guidelines by being taken up by membrane transporter proteins. This is often the case when the drug has a similar structure to the usual substrate of the transporter.
• Some highly polar oral drugs with molecular weights of less than ~200 can be absorbed by traveling between the cells on the gut wall.
• Some highly polar oral drugs can be absorbed by transcytosis across the gut wall.
• Some oral drugs are deliberately designed to be highly polar so as to keep them in the gut. This is exemplified by antibiotics for gastrointestinal infections.

Drug Distribution through the Body

• Although it only takes ~1 minute for a drug to be evenly distributed through the bloodstream (as that is approximately how long the blood takes to cycle through the body), various barriers decrease the efficiency with which the drug is distributed to the rest of the body.
• Most capillaries have 90-150 Å gaps between endothelial cells. This allows most drugs to diffuse into tissues, but blocks plasma proteins.
• Blood vessels in the blood-brain barrier do not have gaps between endothelial cells. In addition, astrocytes coat the blood vessels with fatty layers, preventing polar drugs from entering the brain.
  • Sometimes polar drugs can enter the brain by transcytosis or by being transported on carrier proteins.
  • Often, the blood-brain barrier is beneficial because CNS side effects from many drugs (which are not intended for the brain) are prevented.
• Sometimes drugs are bound by plasma proteins and cannot escape capillaries.
• If a drug has an intracellular target, it must somehow enter the cell to act.
• Highly hydrophobic drugs are often absorbed into fat tissue and removed from the blood supply (especially in obese patients). This can prevent them from reaching their site of action.
• Many drugs can easily pass the placental barrier since this barrier is permeable a variety of nutrients and waste products.
  • Fat soluble drugs pass through most easily. They can reach the same levels between fetal blood and maternal blood and may be toxic to the fetus.
  • Once a baby is born, he/she may retain high levels of the drug in his/her system. Developmentally, the baby is less able to remove and detoxify the drug than an adult, so this can be dangerous.
• If two drugs both are bound by serum proteins like albumin, taking both at the same time results in some of each being displaced from the serum proteins via binding competition. This can result in higher levels of the drugs being released into the body.

Drug Metabolism

• Drug metabolism usually inactivates a drug, but sometimes it can activate a prodrug or other times result in a metabolite with side effects.
• Polar drugs are easily excreted by the kidneys, but nonpolar drugs are more difficult to remove.
• Nonpolar drugs tend to be metabolized via attachment of polar groups to their susceptible moieties.
• Phase I drug metabolism involves non-specific enzymes such as cytochrome P450s (mainly in the liver) attaching polar groups to drug molecules or removing moieties which block polar groups that already exist in the drug molecule (such as via demethylating a methyl ether).
  • Most phase I reactions are oxidations, reductions, or hydrolysis reactions.
  • N-methyl groups, aromatic rings, terminal carbons of alkyl groups, and others are particularly susceptible to oxidation.
  • Nitro, azo, and carbonyl groups are particularly susceptible to reduction.
  • Amides and esters are particularly susceptible to hydrolysis.
• Phase II drug metabolism involves conjugating the newly attached polar groups (or preexisting polar groups) on the drug to another polar molecule. This also mainly occurs in the liver.
• For a drug to approved, all of its metabolites (and their stereochemical conformations) in humans must be characterized for biological activity.

Phase I Metabolism and Cytochrome P450s

• There are at least 33 types of cytochrome P450 in humans. They are grouped into families CYP1-CYP4. Subfamilies are designated by a letter and the specific enzyme is designated by another number (for example CYP3A4).
• Cytochrome P450s contain a heme group. They break molecular oxygen and attach one of the oxygen atoms to the drug and convert the other oxygen atom to water. Thus, they are part of the monooxygenase class of enzymes.
• More exposed drug moieties are more susceptible to cytochrome P450s.
  • Methyl groups are often easily oxidized to make alcohols, longer alkyl groups are usually oxidized on the terminal carbon.
  • The most exposed parts of aliphatic rings are most likely to be oxidized.
• Activated carbon atoms are more easily oxidized by cytochrome P450s.
  • Allylic or benzylic carbons are actually even more easily oxidized than exposed carbons.
  • Hydroxylation of α-carbons which are adjacent to a heteroatom (another type of activated carbon) results in an unstable intermediate which is hydrolyzed. This hydrolysis causes dealkylation of amines, ethers, and other groups.
• Tertiary amines are more reactive than secondary amines to dealkylation because of their greater basicity (so long as their alkyl groups are not too sterically hindering).
  • Tertiary amines are oxidized to N-oxides, while other amines are also oxidized to N-oxides but then undergo subsequent reactions to become hydroxylamines and other compounds.
  • Primary amines extending from aromatic rings can be oxidized to nitro groups, which can undergo other reactions that produce toxic alkylating agents.
• Cytochrome P450s can oxidize sp² and sp carbons in alkenes, alkynes, and aromatic rings to form epoxides.
  • The epoxides are then deactivated by epoxide hydrolase to form diols.
  • Sometimes epoxides evade the epoxide hydrolase and react with DNA, proteins, and other molecules thus causing toxic effects.
  • Oxidized aromatic rings with epoxides may either interact with epoxide hydrolase, undergo rearrangements to form phenols, or undergo other reactions.
• Thiols can be oxidized to disulphides.
• As with any enzyme, cytochrome P450s sometimes catalyze reactions in the opposite direction, thus facilitating reductive processes.

Phase I Metabolism and Other Enzymes

• The liver ER contains flavin monooxygenases, a class of enzymes which includes some cytochrome P450s as well as other proteins. These enzymes tend to oxidize nucleophilic nitrogen, sulphur, and phosphorous but not carbon.
• Monoamine oxidases deaminate catecholamines and oxidize certain drugs.
• Alcohol dehydrogenases produce aldehydes which are then oxidized to carboxylic acids by aldehyde dehydrogenases.
• Some reductive reactions also occur in phase I metabolism, though they are less common. Cytochrome P450s (as mentioned) or other enzymes can be involved.
• Esterases and peptidases are also involved in phase I metabolism. They hydrolyze esters and amides (generally amides are hydrolyzed more slowly than esters). Electron withdrawing groups on esters and amides can increase the rate of their hydrolysis.

Phase II Metabolism

• Phase II metabolism involves the conjugation of polar groups (often added in phase I metabolism) on drugs to other molecules.
• The most common type of phase II reaction is conjugation to glucuronic acid.
  • Phenols, alcohols, hydroxylamines, and carboxylic acids react with UDFP-glucuronate to form O-glucuronides.
  • Sulphonamides, amines, amides, and thiols react with UDFP-glucuronate to form N– or S-glucuronides.
  • Activated carbons (like α carbons) next to carbonyls react with UDFP-glucuronate to form C-glucuronides.
  • These reactions are catalyzed by glucuronyltransferases.

• Another (less common) type of phase II reaction is sulphate conjugation.
  • This occurs mainly with phenols, alcohols, arylamines, and N-hydroxy compounds.
  • These reactions are catalyzed by sulphotransferases which use the cofactor 3’-phosphoadenosine 5’-phosphosulphate as the source of sulphate.
  • Primary alcohols which are sulphonated often become toxic reactive alkylating agents. The other sulphonated groups are generally stable.

• Drugs with carboxylic acid groups can be conjugated to amino acids via the formation of a peptide bond.The most common amino acid used for this purpose in primates is glutamine.
• Drugs with carboxylic acid groups can be conjugated to cholesterols by transesterification reactions.
• Occasionally, alcohol groups on drugs may be conjugated to fatty acids via an ester linkage.
• Electrophilic groups like epoxides, alkyl halides, sulphonates, disulphides, and radicals can react with the nucleophilic thiol of the tripeptide glutathione to form glutathione conjugates.
  • These reactions are catalyzed by glutathione transferase.
  • Glutathione conjugates can be converted to mercapturic acids.
  • These reactions can be used to inactivate environmental toxins or electrophilic alkylating agents from phase I reactions.

• A few conjugation reactions can actually decrease the polarity of the resultant compound.
  • These are most commonly acetylations (using the cofactor acetyl CoA) and methylations (using the cofactor S-adenosyl methionine). Note that the exception here is that methylation of a pyridine nitrogen makes a polar quaternary ammonium salt.
  • Acetylations usually occur on primary amines.
  • Methylations usually occur on phenols, amines, and thiols.

Different Metabolic Stabilities

• Cytochrome P450 activities are extremely variable between patients.
• Substantial numbers of patients even lack certain cytochrome P450 isoforms. This can lead to dangerous buildup of some drugs in their bodies or a lack of activity of some prodrugs.
• Differences in drug metabolism are especially pronounced between populations, thus different countries often have different recommended doses.
• Pharmacogenomics may allow effective patient-specific drug regimens to be implemented based on genetic markers (personalized medicine).
• Cytochrome P450 activity can be affected by foods, drugs themselves, and other chemicals.
  • Brussels sprouts and cigarette smoke enhance activity.
  • Grapefruit juice inhibits activity, sometimes causing toxic buildup of drugs or prodrugs.
  • Certain antibiotics can inhibit cytochrome P450s. This can result in unexpected toxicity if another drug is being taken simultaneously.
  • Some drugs stimulate cytochrome P450s. If such a drug is taken along with another drug, then the activity of the other drug may be lower than expected.
  • New drugs are usually tested for effects on cytochrome P450s.
• Terminology: hard drugs are less susceptible to metabolism while soft drugs or antedrugs are more susceptible to metabolism and are designed to be metabolized in a controlled manner so that they can accomplish their function and then be eliminated.
• Oral drugs must pass through the liver immediately when they enter the blood and thus will be subjected to liver enzymes. This is called the first pass effect. Other methods of delivery allow the drug to move around the body before passing through the liver, with some molecules never entering the liver due to diffusion into the tissues.

Drug Excretion

• Gaseous drugs are excreted by diffusing into the lungs and being exhaled (the reverse of how they are administered).
• Some oral drugs may be incorporated into bile by passing into bile ducts in the liver and then be returned to the intestines, reducing the amount of drug that reaches the rest of the body (the amount distributed is less than the amount absorbed).
• About 10-15% of some drugs can be lost through the skin via sweat. Saliva and breast milk can also contribute to drug elimination, but the amount lost is much less. The main concern with breast milk is that an infant may then consume some of the drug.
• Drugs are principally excreted by the kidneys. They enter via the renal artery which branches into arterioles and feeds into nephrons.
  • Small molecule drugs filter through the glomerulus. Afterwards, they pass through the proximal and distal tubules, but are partially reabsorbed by surrounding capillaries.
  • Aquaporins in the proximal and distal tubules remove water, concentrating the drug in the tubules and leading to faster diffusion out of them.
  • Hydrophobic drugs are easily reabsorbed from the proximal and distal tubules, while polar drugs remain trapped within the tubules before being excreted. In this way, drug metabolism is able to speed the excretion of xenobiotics even if they start as hydrophobic molecules.
  • Some drugs are actively transported from the blood vessels into the kidneys.

Choosing a Bioassay for Drug Testing

• To avoid wasting resources on ineffective drugs, generally in-vitro bioassays are conducted first, then animal models, and then clinical trials. This helps control for increasing numbers of variables as the more complex systems are utilized.
• In-vitro bioassays can be carried out on isolated enzymes (which were produced in recombinant bacteria or yeast), bacteria or other microorganisms (for antimicrobials), or on mammalian or yeast cells expressing a target protein of interest. Some more complex in-vitro bioassays include those which use hepatocyte tissue culture to expose drugs to cytochrome P450s and those which use artificial membranes to model drug absorption across the blood-brain barrier.
• In-vivo bioassays are animal models (and later, clinical trials). Many animal models are humanized, they are recombinant and express certain human proteins. Animal models are expensive, slow, legally elaborate, and sometimes have different results than clinical trials. Nevertheless, they are an essential part of the drug development process.
• Test validity: if a drug is being used to treat a condition for which most models are inadequate, such as in the cases of many mental illnesses, it is important (yet difficult) to select a method of testing. In-vitro models involving receptors central to the disease process are often chosen to start, but these can be problematic due to poor understanding of the role of the receptor in the disease. One may even skip animal trials for some of these types of situations.

High-Throughput Screening

• Automated screening of thousands of compounds, often with dozens of different types of biochemical tests.
• A method of measurement, such as the displacement of radiolabeled ligands from receptors, cell growth, color change, etc., is necessary.
• Generally, positive hits are compounds with activity at concentrations of 1 nM to 30 μM.
• False positive hits are a major issue.
  • One major source of false positive hits are promiscuous inhibitors. These compounds inhibit many targets with little selectivity.
  • Promiscuous inhibitors are often aggregates of multiple compounds which adsorb target proteins to their surfaces.
  • Promiscuous inhibitors tend to be more common in solutions with mixtures of compounds.
  • Adding a detergent to the test solution will usually break up promiscuous inhibitor aggregates.
  • Another source of false positive hits are reactive compounds which form covalent bonds with their targets. Although some drugs do behave this way, in high-throughput screening, such compounds are usually not target-specific and thus are not useful.

Nuclear Magnetic Resonance Screening

• NMR induces certain atomic nuclei to enter an excited spin state.
• When the nuclei return to ground state, they release energy that can be measured. The pattern of energy release can characterize specific molecules.
• The amount of time taken for nuclei to return to the ground state is called the relaxation time.
• The relaxation time for small molecules like drugs tends to be much longer than macromolecules like proteins and drug-protein complexes.
• To screen drugs by NMR, the following steps are generally performed.
  • The NMR spectrum of the drug on its own is measured.
  • The target protein (or other macromolecule) is treated with the drug.
  • The NMR spectrum of the (potential) drug-protein complex is measured, but with a delay so that only free drug molecules will be detected if they are present. (Because the free drug molecules have long relaxation times relative to the drug-protein complexes). If the drug molecules have bound to the target macromolecules, they will no longer be detectable in the sample.
• NMR holds an array of advantages and disadvantages.
  • NMR can screen about 1,000 different compounds per day using a single machine.
  • NMR can be used to determine if hits from high-throughput screening are false positives.
  • NMR can identify weakly binding compounds (that may have otherwise been missed) which may then be modified to improve their affinity.
  • NMR can identify the drug binding site region of the macromolecule.
  • A major disadvantage is that NMR requires at least 200 mg of purified target protein for standard screening procedures.

Affinity Screening

• The target molecule is immobilized on a solid substrate.
• A mixture of potential drug compounds (such as from an extract) is exposed to the treated substrate.
• The mixture is removed and tested for activity elsewhere. If the mixture has lost its activity, it is likely due to active compounds being adsorbed onto the treated substrate.
• The active compounds can then be removed from the substrate (often by changing the pH) and tested.
• This is especially useful for identifying antibiotics.

Surface Plasmon Resonance

• Surface plasmon resonance employs a layered surface. The bottom layer is a glass plate. The next layers are a 50 nm gold film, a 100 nm dextran layer, and a flowing buffer solution on top (the buffer also enters the dextran).
• Embedded in the dextran layer are covalently immobilized ligand molecules.
• Monochromatic plane polarized light is shown at an angle of incidence (which is greater than the critical angle in order to produce total internal reflection) from below the layers.
• Despite the total internal reflection, if the proper angle is selected, a small component of the light called the evanescent wave will interact with the gold film’s free electrons (called plasmons) and deposit energy into them. This will cause a reduction in the measured intensity of the reflected light.
• If the refractive index of the buffer changes, then the angle that produces surface plasmon resonance will also change.
• The introduction of the target macromolecule into the buffer flow will result in a change of the buffer’s refractive index if the ligand binds the macromolecule. This can determine the targets to which a ligand might bind. It can also be used to determine binding equilibrium and rate constants.
• To test a novel drug compound, a known ligand for the macromolecule should be immobilized in the dextran and then both the drug and the target can be added to the buffer flow. In this way, if the drug binds the target, less target will be available to bind the known ligand, and the surface plasmon resonance angle will not change as much.

Scintillation Proximity Assay

• The target macromolecule is covalently linked to beads that are coated with a scintillant (a substance which produces light when it absorbs ionizing radiation).
• A known ligand (of the target) radioactively labeled with iodine-125 is added to the solution. When it binds the target, the radiation makes the scintillant produce light.
• The drug molecule is added to the solution. If it binds the target, less of the labeled ligand will be able to bind the target and thus less light will be emitted.

Isothermal Titration Calorimetry

• Two glass cells are filled with buffer. One of them also contains a protein target in solution. Both cells are heated slightly to the same temperature.
• The drug molecule is added to the sample cell.
• If the drug binds the target, then energy will either be released or absorbed depending on whether the binding is exothermic or endothermic.
• Increases or decreases in the sample cell’s temperature relative to the reference cell indicate the binding of the drug to the target and the reaction’s thermodynamic properties.
• The temperature changes are measured as “spikes” which occur when the amount of power necessary to maintain a constant temperature in the cells is altered.

Virtual Screening

• Computer programs can determine if a compound is likely to bind a target.
• There is no guarantee that the virtual predictions will be correct, but they can “narrow the search” by identifying the best candidates from large libraries of structures. These candidates then can be tested experimentally.

Finding Lead Compounds from Natural Sources

• The identification of active compounds from natural sources is called pharmacognosy.
• Many active compounds are secondary metabolites.
• Active compounds are commonly obtained from a variety of organisms.
  • Plants are a rich source of lead compounds. Unfortunately, few plants are well-studied and there are estimated to be numerous plant species which are completely unknown. In addition, many potentially useful plants are going extinct due to anthropogenic activity (especially rainforest destruction).
  • Microorganisms (mainly fungi and bacteria) often produce many antimicrobial compounds. In addition, some microorganisms produce compounds with other therapeutically useful activities.
  • Marine organisms such as coral, sponges, fish, and marine microorganisms are a relatively unexplored source of valuable compounds.
  • Animals sometimes produce useful compounds.
  • Toxins from arthropods, vertebrate animals, and microorganisms often have potent biological activity and bind specifically to target macromolecules. Analogs of some toxins can be highly effective drugs.
• Active compounds can also be identified by examining the medical folklore of certain cultures. Although usually ineffective, effective by placebo, or harmful, a few substances used by such cultures contain active compounds which may be developed into drugs.

Finding Lead Compounds from Synthetic Compound Libraries

• Numerous synthetic compounds are prepared by pharmaceutical companies and can be tested for activity. However, many of these are just variations of the same backbone and thus are less likely to have novel activities.
• Sometimes pharmaceutical companies will purchase compounds from university laboratories. In many of these cases, such compounds are not intended to have a pharmaceutical function and are part of other types of research, yet they still have potential.
• Intermediate compounds in drug synthesis (and other syntheses) can be tested for biological activity.

Finding Lead Compounds from Existing Drugs

• Companies may modify their competitor’s drugs to create new versions for testing. Sometimes, these new drugs may achieve better activity than the originals (as in the case of penicillins).
• If an existing drug has a potentially useful side effect, then that drug may be modified to remove its original intended activity and enhance the side effect (selective optimization of side activities or SOSA). In rare cases, such drugs may even not require modification to be approved for an alternate purpose.

Find Lead Compounds from Natural Ligands, Substrates, and Related Structures

• Natural ligands for receptors can sometimes be modified to act as drugs.
  • Existing biological agonists may be improved to create effective drugs.
  • Creating an antagonist from an agonist sometimes can be achieved by adding extra binding groups.
• When the natural ligand for a receptor is unknown (an orphan receptor), research to uncover that ligand can be worthwhile for the purpose of opening a new avenue of drug design.
• Enzyme substrates can be modified to create effective inhibitors since they already bind to the enzyme. Also, because enzymes catalyze reactions in both directions, enzyme products can be used the same way.
• Natural allosteric regulators of receptors and enzymes can be modified to make drugs as well.

Structure-Activity Relationships

• After the structure of a lead compound is uncovered, the functional groups of the compound which contribute to its activity or stability in the body should be identified.
• By either modifying the structure of the lead compound to individually remove functional groups or by performing total syntheses to make versions of the compound individual functional groups, the importance of each group to activity of the drug can be tested.

Binding Role of Alcohols and Phenols

• The the hydroxyl group found in alcohols and phenols can act as a hydrogen bond donor or acceptor, contributing to binding interactions. These hydrogen bonds have directional preferences.

• Substituting a methyl ether or ester for the hydroxyl group produces analogs that can test for whether the hydroxyl group contributed to the drug’s activity. It is often relatively easy to accomplish these syntheses.
  • The groups can thus no longer act as hydrogen bond donors.
  • Although the analogs still would contain oxygens that could act as hydrogen bond acceptors, the steric hindrance caused by the bulkier groups reduces the degree to which this occurs.
  • In the case of esters, there is also a resonance structure which decreases the ability of the more easily accessible oxygen (the alkoxy group oxygen) to act as a hydrogen bond acceptor. A positive formal charge is placed on this oxygen because some of its electrons move towards the central carbon in the resonance structure.

Binding Role of Aromatic Rings

• Because aromatic rings are planar and nonpolar, they are often involved in van der Waals or hydrophobic interactions with similarly flat and nonpolar regions of the binding site.

• Aromatic rings can also interact with quaternary ammonium ions at the binding site via induced dipole interactions.
• Using a cyclohexane ring (which is not planar) in place of an aromatic ring produces analogs that can test whether the aromatic ring contributed to the drug’s activity.
  • The nonplanar cyclohexane ring is bulky (and thus can’t fit into small binding pockets) and its axial hydrogens keep the ring at a distance from the binding site.
  • The methods used to convert aromatic rings to cyclohexane rings are usually not successful with lead compounds, so to accomplish this transformation, total synthesis is most often used.

Binding Role of Alkenes

• Alkenes are similar to aromatic rings in that they interact with the binding site via van der Waals or hydrophobic interactions.
• Saturation (reduction) of alkenes to alkanes increases their bulk due to the additional hydrogens and prevents as close of approach to the binding site. This can create analogs to test whether the alkene contributes to the drug’s activity.
• Alkenes are often easier to reduce than aromatic rings, so analogs can sometimes be prepared directly from the lead compound.

Binding Role of Carbonyls

• Ketones are planar groups that can use their oxygen as a hydrogen bond acceptor. Two possible hydrogen bonds can be formed this way because of the two lone pairs on the oxygens.

• Ketones also can initiate dipole-dipole interactions because of their dipole moment.
• Ketones can be reduced to alcohols, changing the geometry from planar to tetrahedral and thus weakening hydrogen bonding and dipole-dipole activity. This can create analogs to test whether the ketone contributes to the drug’s activity.
  • If the hydroxyl oxygen still may be acting as a hydrogen bond acceptor, then ether or ester groups should be attached described for alcohols and phenols.

• Aldehydes are less common in drugs due to their reactivity, but if they are present, similar strategies to those of the ketones can be used for testing their role in binding.

Binding Role of Amines

• Amines can use their lone pair as a hydrogen bond acceptor. The hydrogens of primary and secondary amines (but not tertiary or aromatic amines) can each act as hydrogen bond donors.
• If the amine is protonated, it cannot accept hydrogen bonds, but its hydrogen bond donating activity is stronger. In addition, ionic interactions with the target can occur.

• To create analogs to test whether the amine contributes to the drug’s activity, the amine can be replaced by an amide group.
  • It is relatively easy to change a primary or secondary amine to an amide without needing to perform total synthesis.
  • Tertiary amines can often be changed to amides if one of their R groups is a methyl group. This is accomplished by first removing the methyl group with vinyloxycarbonylchloride (VOC-Cl). This technique was used with morphine.

Credit for Images: Bioconjugate Techniques (Greg T. Hermanson)

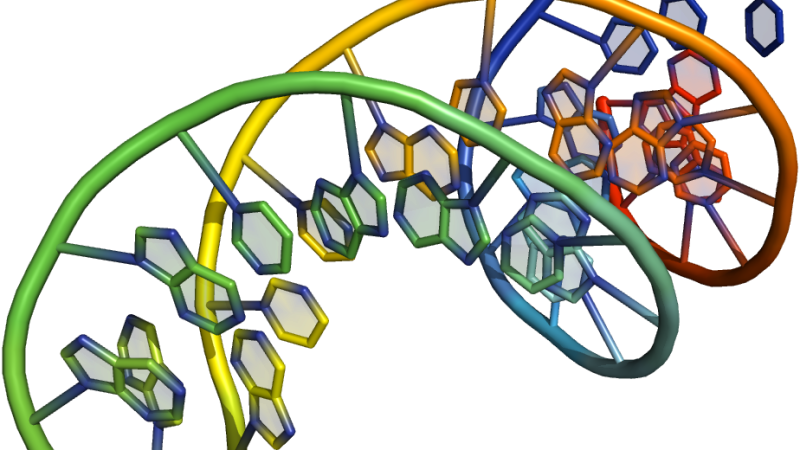

 Applications and Challenges of DNA Bioconjugates

• Modified oligonucleotides are used in a variety of techniques that involve hybridization.
• Sensitive hybridization reagents can use oligonucleotides that are labeled with a fluorescent marker or an enzyme that produces observable products.
• DNA does not include many of the easily modified functional groups present in proteins.
• To modify DNA, other functional groups usually must be attached first.
• The two main categories of DNA bioconjugation techniques are chemical and enzymatic. Some enzymatic approaches are described here.

Random-Primed Labeling

• Random-primed labeling is a form of enzymatic DNA bioconjugation that uses a reaction process with just a single denaturation step, a single annealing step, and a single extension step.
• The following materials are added to a mixture for random-primed labeling.
  • Random hexa-deoxynucleotides to serve as primers.
  • dNTPs (ordinary nucleotides).
  • Modified dNTPs such as ³²P radiolabeled nucleotides (which do not affect the probe’s hybridization efficiency), fluorescent dye labeled nucleotides, or affinity molecule labeled nucleotides (which bind observable compounds).
  • Template DNA.
  • The Klenow fragment version of DNA polymerase I that lacks 5’-3’ exonuclease activity.
• The ratio of ordinary dNTPs to modified dNTPs decides the magnitude of labeling by determining the amount of modified dNTPs that are incorporated.
• Random-primed labeling produces a random array of oligonucleotides of different lengths and sequences corresponding to different parts of the template.
  • This is because the oligonucleotides are generated by the replicated sequences between annealed random hexa-deoxynucleotide primers (the oligonucleotides also include the primer sequence at their 5’ ends).

Nick Translation Labeling

• Nick translation labeling is a form of enzymatic DNA bioconjugation that uses a 15°C incubation temperature for the reaction.
• The following materials are added to a mixture for random-primed labeling.
  • dNTPs (ordinary nucleotides).
  • Modified dNTPs such as affinity tagged nucleotides or fluorescently tagged nucleotides.
  • Template DNA.
  • Mg²⁺ and low concentrations of pancreatic DNase I (which only has single-stranded endonuclease activity in the presence of Mg²⁺).
  • DNA polymerase I.
• The small amount of DNase I with Mg²⁺ makes a few single-stranded nicks in the template, allowing the DNA polymerase I to begin nick translation. In this way, new dNTPs and labeled dNTPs replace the nucleotides in the original template molecule.
• The ratio of ordinary dNTPs to modified dNTPs decides the magnitude of labeling by determining the amount of modified dNTPs that are incorporated.

PCR Labeling

• PCR labeling is a form of enzymatic DNA bioconjugation that uses a PCR reaction.
• The standard PCR components are added to the reaction. In addition, some labeled dNTPs or primers containing labeled nucleotides are also added.
• When labeled dNTPs are added, the ratio of ordinary dNTPs to modified dNTPs decides the magnitude of labeling by determining the amount of modified dNTPs that are incorporated.
• RT-PCR versions of PCR labeling can be used to create sensitive assays for RNA viruses.

Terminal Transferase Labeling

• Terminal transferase labeling uses terminal deoxynucleotidyl transferase (TdT) to add a labeled dNTP to the 3’ ends of DNA oligonucleotides without the need for a template.
• TdT (found in certain lymphocytes) usually adds multiple non-templated nucleotides to the 3’ ends of oligonucleotide strands.
• In the presence of Co²⁺ salts, TdT only adds single non-templated nucleotides to the 3’ ends.
• By applying TdT to add a labeled dNTP to the 3’ ends of oligonucleotides, the middle of the oligonucleotide strand will not have its hybridization efficiency disturbed. This is especially useful for large labels like biotin-streptavidin detection conjugates or many fluorescent dyes.

T4 RNA Ligase 1 Labeling

• T4 RNA ligase 1 labeling uses a very similar mechanism to that of TdT labeling. T4 RNA ligase 1 adds a single nucleotide to the end of an RNA oligonucleotide.
• This also has the benefit of not affecting hybridization efficiency.
• Unlike the other methods, T4 RNA ligase 1 labeling requires labeled bis-phosphoryl nucleotide derivatives (which have one phosphate on the 5’ end end one phosphate on the 3’ end) rather than labeled dNTPs.

Individual Labeled Nucleotides

• Although many modifications can be made to individual nucleotides, most block the activity of enzymes used for labeling of oligonucleotides. However, some will allow the activity of one or more type of labeling enzyme (see diagram).
• Sometimes, it can be beneficial to add an amine to a nucleotide so that the amine can react with other chosen molecules to form various types of conjugates.
• There are numerous chemical techniques for labeling individual nucleotides.

     Many rationalists dismiss emotion as lacking intrinsic and practical value. Many romantics dismiss science as lacking emotional and spiritual value. Most people assume that emotion and rationality are mutually exclusive. Unfortunately, these attitudes have caused a schism between the cultures of imagination and science. I propose that unifying rationality and romanticism will open the floodgates to a beautiful future.

     Some behaviors which are considered as illogical by the pure rationalist actually do have logical consistency when approached from the perspective of rational romanticism. I would argue that major risks are worthwhile even if there is insufficient data to predict the “degree of risk.” For instance, ambitious research projects are less likely to succeed than more moderate ones and it is difficult to gain a reasonable measure for the degree of risk involved in such projects. Some researchers might deem ambitious projects as having too much unknown risk to pursue. But throughout history, we have seen that the people who ignore boundaries and even apparent impossibilities, the people who keep obsessively fighting to make their vision a reality no matter the odds, we have seen that these are the people who change the world. The space program was once considered ludicrous as was heavier-than-air flight. Experts and laypeople alike have scoffed at inventions such as the lightbulb, the automobile, and the home computer.

     By contrast, the activities of scientists have often befuddled and frightened more artistically inclined peoples. In stories, science and technology usually appears as a tool of the villains. Consider Frankenstein, Gattaca, Brave New World, Jurassic Park, The Terminator, and countless other fearmongering works of fiction. (It should be noted that Frankenstein may or may not have originally been intended this way, but that it is almost always interpreted in an anti-science manner by the public). The stereotype of the mad scientist frames science as at best irresponsible and arrogant and at worst evil. The poetry magazine Carbon Culture features poems that are centered almost exclusively on attacking technology. Transhumanists are nearly universally vilified or dismissed as crazy by the media. Religious and environmental “bioethicists” like Fukayama, Kass, and McKibben viciously denounce science as immoral. We are living in an age when the activities of emotionally-minded individuals hold science back rather than driving it forward. Emotion is powerful and intrinsically valuable, but it should be used for constructive and not destructive purposes.

     If we cultivate rational romanticism, we can achieve wonders. The cultures of imagination and science are currently opposed. But by bringing them together, science will not be limited by status quo bias or stifling pragmatism. Likewise, art will not be limited by an aversion to the beauty found in science and technology. In this scenario, science and art will be synonymous. Emotional intensity will be channeled towards solving challenges and enriching the human experience. With the combined power of science and emotion, we can make dreams into reality.
